Unlocking Innovation with 3D Scanning and Reverse Engineering – Part 1: The Basics

In the realm of innovation and cutting-edge technology, two indispensable tools have emerged to transform industries across the board: 3D scanning and reverse engineering. These remarkable processes aren’t merely buzzwords; they are the keys to unlocking new possibilities, solving complex challenges, and propelling your business forward.

At Hysovent, we understand the immense potential that 3D scanning and reverse engineering hold. With our expertise, state-of-the-art equipment at our disposal, and a network of business allies, we’ve harnessed these technologies to drive innovation, improve product design, and streamline manufacturing processes for countless clients.

In this comprehensive blog post, we will delve into the intricate world of 3D scanning and reverse engineering, demystifying the technical jargon and illustrating the tangible benefits they bring. Whether you’re a seasoned professional seeking to enhance your knowledge or a business owner searching for innovative solutions, this article is your gateway to understanding the power of 3D scanning and reverse engineering.

And remember, as you explore the capabilities of these technologies, don’t hesitate to reach out to us at info@hysovent.com to discuss how Hysovent can partner with you to turn your ideas into reality and stay ahead of the curve in an ever-evolving landscape. Now, let’s embark on this enlightening journey into the world of 3D scanning and reverse engineering.

1. What is 3D Scanning?

At the heart of the remarkable process of reverse engineering lies the indispensable tool of 3D scanning. It serves as the initial step, the gateway through which physical objects are transformed into digital representations, setting the stage for precise analysis, replication, and innovation.

3D scanning is the process of capturing the physical geometry and characteristics of an object or environment using specialized technology. Unlike traditional measurement methods that may be time-consuming and prone to inaccuracies, 3D scanning offers a highly efficient and precise solution.

Key Elements of 3D Scanning:

• Data Acquisition: 3D scanners utilize various methods such as laser technology, structured light, or photogrammetry to capture a vast amount of data points from the surface of an object.
• Point Cloud Data: The output of a 3D scan is a point cloud—a three-dimensional representation of the object, comprised of millions of data points, each with its own spatial coordinates.
• Digital Replica: The point cloud data is then processed to create a digital replica of the scanned object, complete with its intricate details and dimensions.

Applications of 3D Scanning

The applications of 3D scanning are diverse and far-reaching, providing immense value to industries worldwide:

• Product Design and Prototyping: 3D scanning is instrumental in designing and prototyping new products, ensuring accurate measurements and form.

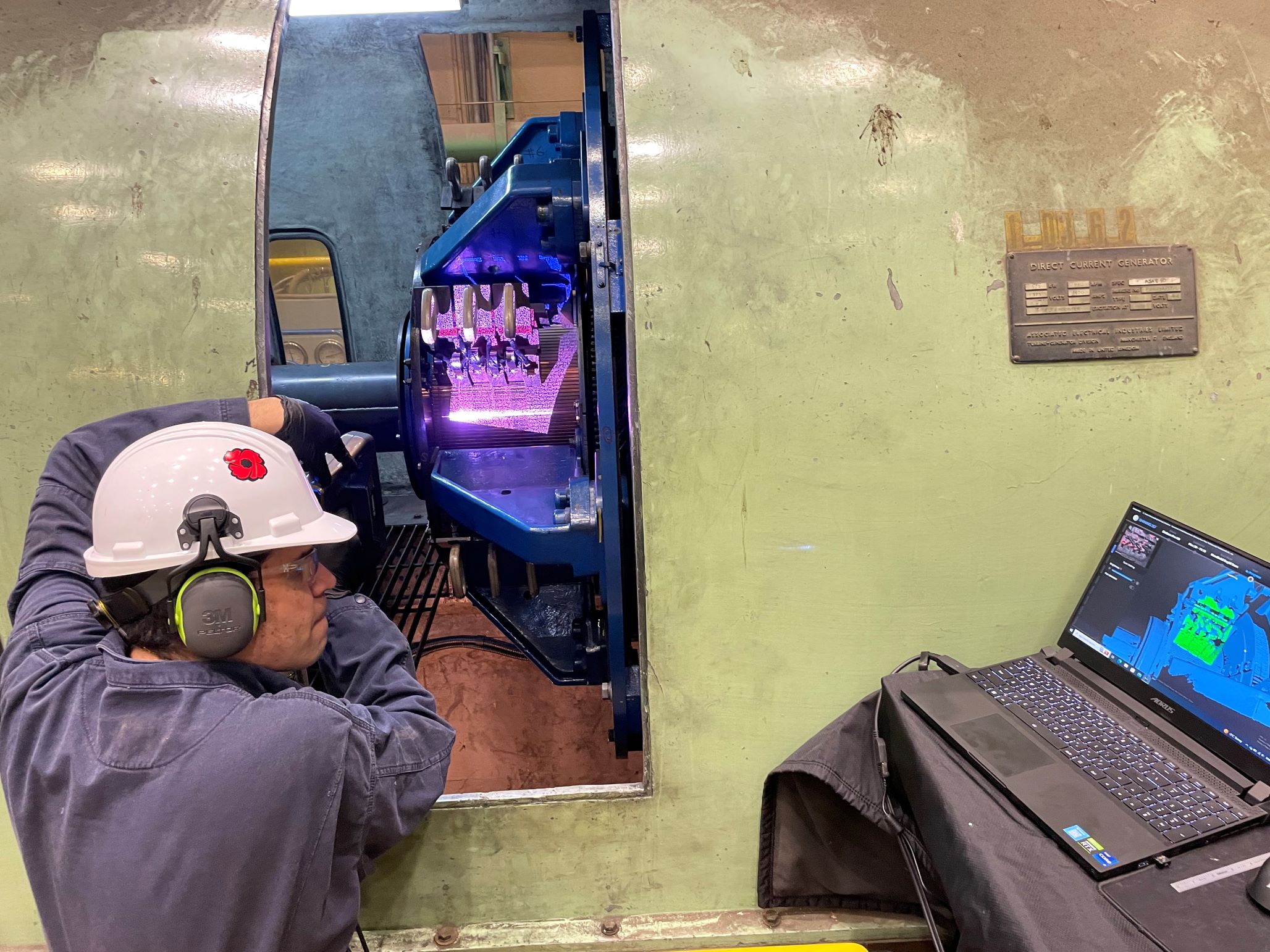

• Repairs: of damaged equipment and pieces, that after being broken or damaged, and without pre-existing drawings, are necessary to be reconstructed or made new from scratch. This is very common in the industrial and power generation sector.

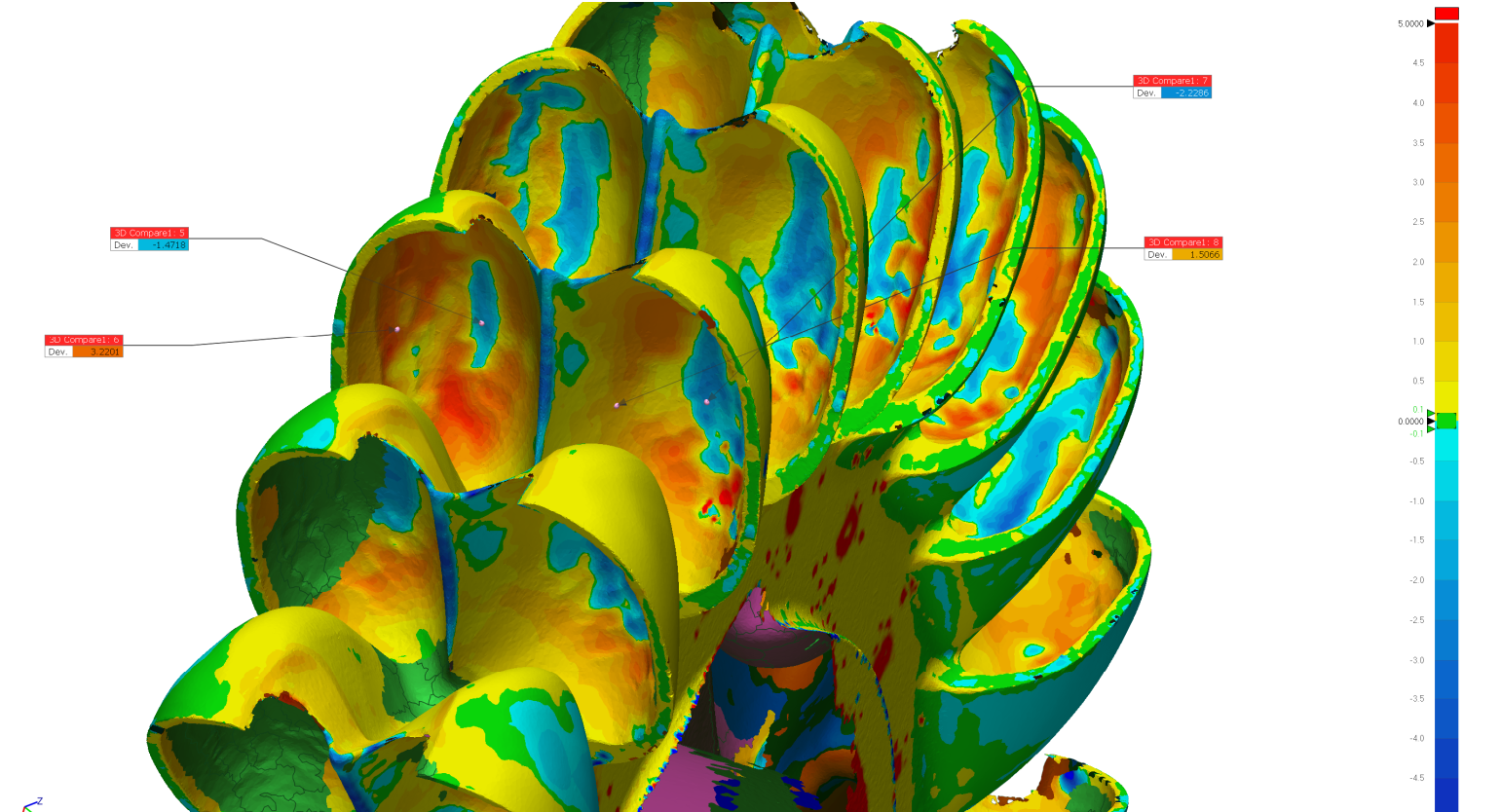

• Quality Control: It plays a pivotal role in quality control processes, detecting deviations from design specifications in manufactured items.
• Heritage Preservation: In the realm of cultural heritage, 3D scanning is used to preserve and replicate historical artifacts and monuments with unparalleled precision.

2. The Basics of Reverse Engineering

Reverse engineering is the process of meticulously dissecting and comprehending an existing object or system, with the primary objective of recreating or improving upon it. This practice, while often associated with technology and engineering, finds applications in various fields, from manufacturing to software development.

At its core, reverse engineering involves a series of systematic steps:

• Data Acquisition: The process begins with the collection of data from the object or system to be reverse engineered. This can be done through various means, such as 3D scanning, measurement tools, or software analysis.
• Data Processing: The acquired data is then processed to create a digital representation. In the case of physical objects, this often involves converting point cloud data obtained from 3D scanning into a usable format.

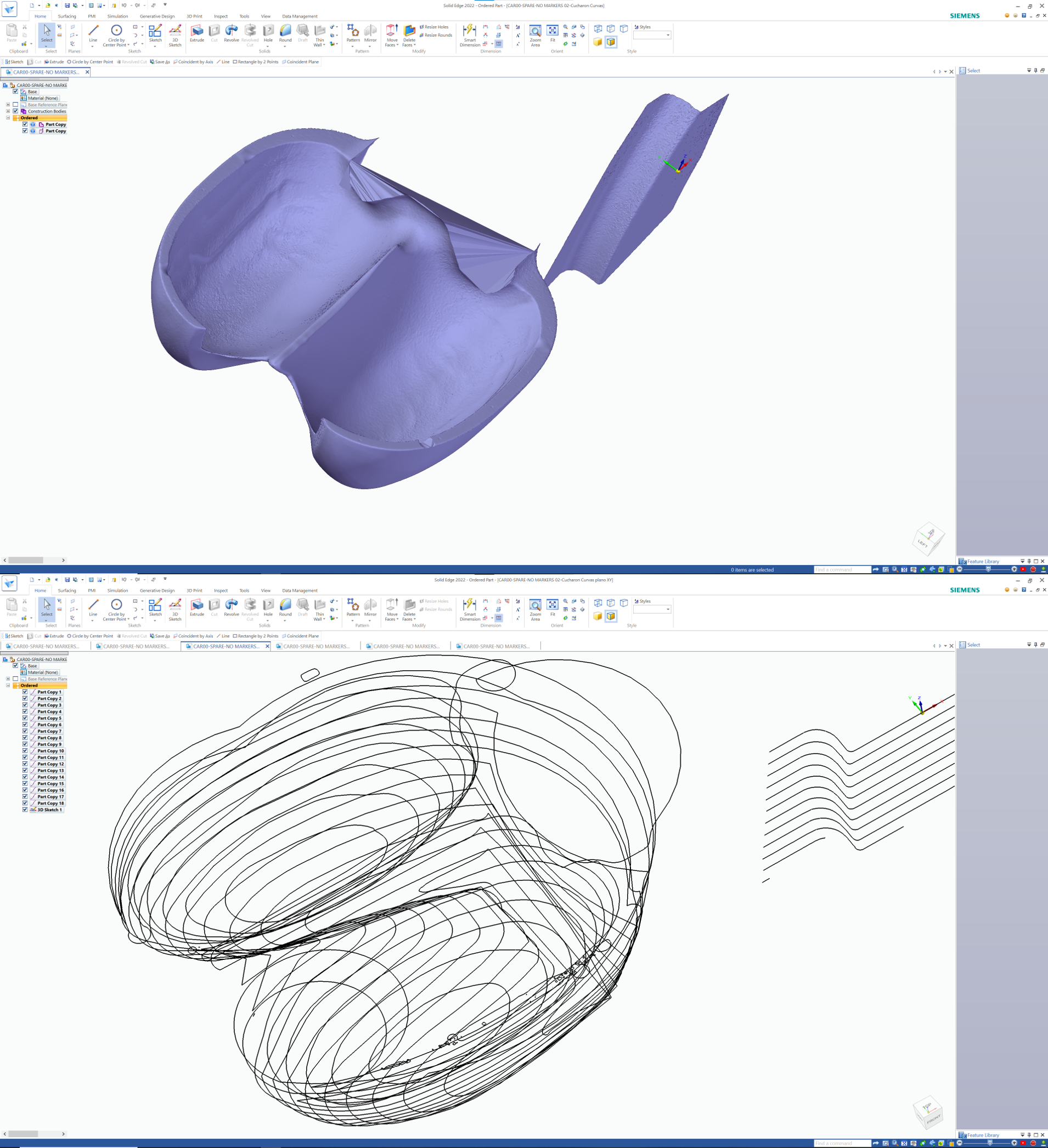

• CAD Modeling: The processed data serves as the foundation for creating Computer-Aided Design (CAD) models. These digital models are an exact or improved replica of the original object.

Common Applications of Reverse Engineering

Reverse engineering is a versatile practice with diverse applications, making it an invaluable tool for businesses across industries. Its primary goal is to create a digital twin of an asset, especially when creating reference drawings or measuring through conventional means proves challenging or impossible. The size of the asset is not a constraint, and the applications are far-reaching:

• Creation of the Digital Twin: The central aim of reverse engineering is to craft an accurate digital replica of the asset, allowing for in-depth analysis and future modifications.
• Reference Drawings for Operations: These reference drawings serve as essential guides for day-to-day operations, ensuring that your asset is used optimally and safely.
• Reference Drawings for Repairs: In cases where maintenance or repairs are needed, having detailed reference drawings simplifies the process, whether performed in-house or by external shops.
• Re-Modeling: Reverse engineering enables the development of new components based on the original asset with specific modifications. This is especially beneficial when enhancing or customizing existing designs.
• Re-Casting: When an asset includes parts that require replacement, reverse engineering can facilitate the creation of new molds for casting. This results in exact clones of the original parts, preserving the integrity of the asset.
• Material Strength Analysis: For safety-critical applications, such as hoists and lifting devices, reverse engineering can provide the data needed for material strength analysis and certification, ensuring compliance with industry standards.
• Finite Element Analysis (FEA): FEA is a powerful tool for simulating how an asset or component will behave under various conditions. Reverse engineering can provide the essential data for FEA, enabling you to predict performance and durability accurately.

At Hysovent, we recognize the boundless potential of reverse engineering. Our services encompass all these applications and more. Whether you’re dealing with a complex industrial machine, a delicate piece of artwork, or any asset in need of a digital twin, we have the expertise and technology to deliver precise solutions.

3. 3D Scanning Technologies

3D scanning is a diverse field with multiple technologies, each offering unique capabilities and applications. In this section, we’ll unravel the intricacies of these technologies, shedding light on their principles and showcasing their real-world applications.

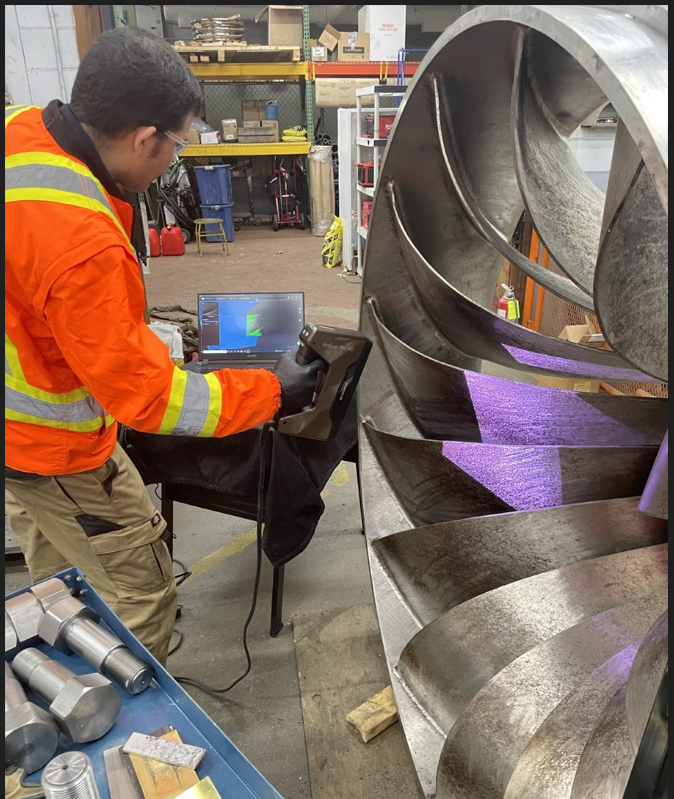

Laser Scanning: Precision at the Speed of Light

Laser scanning is a technology that employs laser beams to capture precise measurements of an object’s surface. Here’s how it works:

• Principle: Laser scanners emit laser beams that bounce off the object’s surface and are captured by a sensor. By measuring the time it takes for the laser to return, the scanner calculates the distance to each point on the object, creating a point cloud.
• Advantages: Laser scanning is exceptionally precise, capable of capturing intricate details, and is suitable for a wide range of materials. It’s often used in industries like architecture, engineering, and aerospace.
• Applications: Laser scanning is instrumental in creating detailed 3D models of buildings, machinery, and archaeological artifacts. It’s also used in quality control to ensure manufactured items meet specifications.

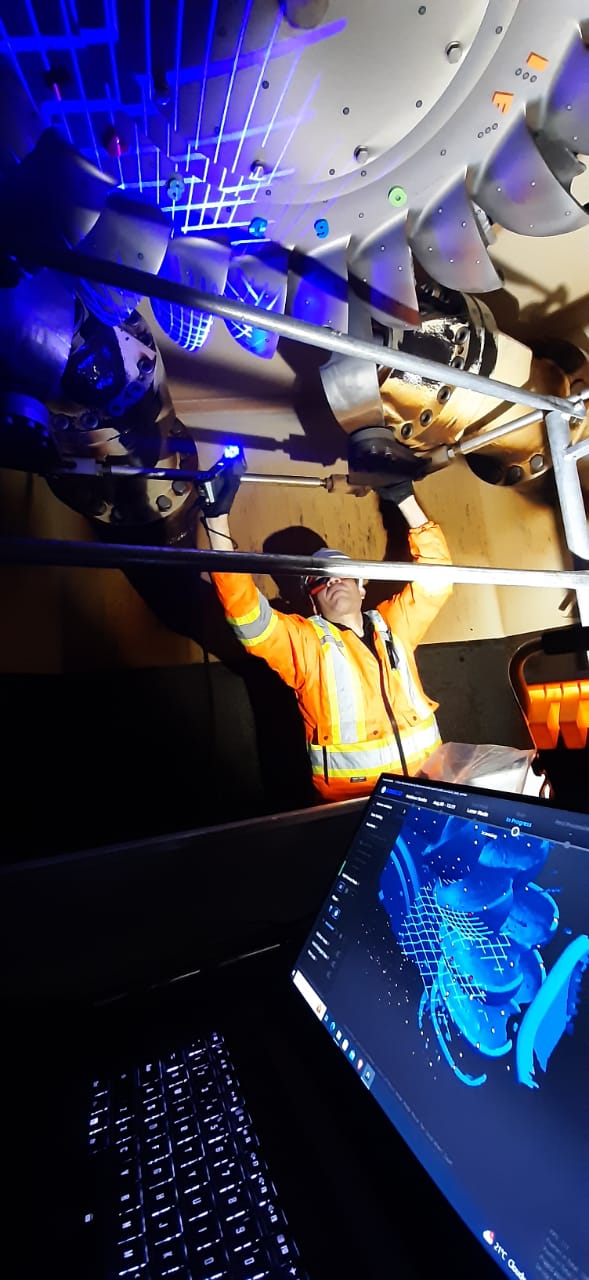

Structured Light Scanning: Projecting Precision

Structured light scanning involves projecting a pattern of light onto an object and capturing its deformation to determine the object’s shape. Here’s an overview:

• Principle: A structured light scanner projects a known pattern, such as stripes or grids, onto the object. The deformation of this pattern on the object’s surface is recorded by the scanner’s camera, allowing for the reconstruction of a 3D model.
• Advantages: Structured light scanning is fast and highly accurate, making it suitable for applications like 3D printing, reverse engineering, and industrial design.
• Applications: This technology is used extensively in product design, quality control, and rapid prototyping. It’s also valuable in the entertainment industry for capturing actors’ facial expressions and body movements for animations.

Photogrammetry: Harnessing the Power of Images

Photogrammetry relies on the analysis of photographs taken from multiple angles to reconstruct the 3D geometry of an object or scene. Here’s how it operates:

• Principle: Photographs of the object are taken from different viewpoints. Specialized software analyzes these images, identifying common features and calculating their positions in 3D space.
• Advantages: Photogrammetry is versatile, cost-effective, and can be used in various industries, including archaeology, geology, and surveying.
• Applications: It is applied in fields like topographic mapping, forensic reconstruction, and cultural heritage preservation. In archaeology, for example, photogrammetry helps create detailed 3D models of ancient sites and artifacts.

At Hysovent, we harness the power of these 3D scanning technologies to meet the unique needs of our clients. Whether it’s the precision of laser scanning, the speed of structured light scanning, or the versatility of photogrammetry, we have the expertise and cutting-edge equipment, as well the partners, to deliver accurate results.
